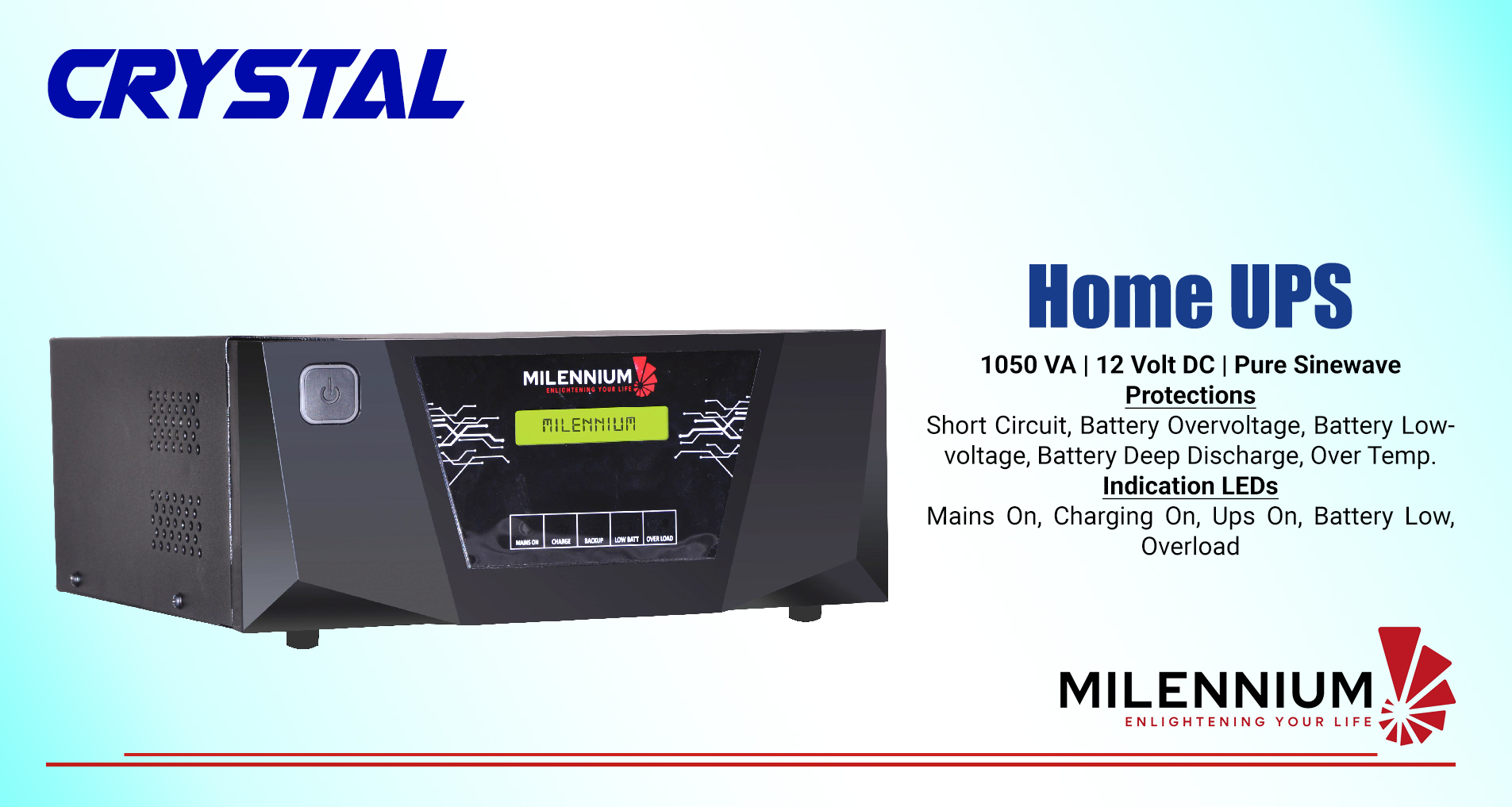

Home UPS 1050 VA
Overview of PRODUCT
1050 VA 12 Volt DC
Pure Sinewave Home UPS
DSP Microcontroller Based
Short Circuit, Battery Overvoltage, Battery Lowvoltage, Battery Deep Discharge, Over Temp.(Auto Recovery)
Powered By: Millennium
Country of Origin: INDIA
Salient Features:
# State of Art highly efficient and high switching speed MOSFET based PWM Technology.
# Single PCB concept based design for pure sine wave, LCD and LED Display.
# Powerful Charging even during very low Voltage. Completely Noiseless Operation.
# Precise Auto Thermal management and protection.
# Fastest protection (Almost all) to make rugged and enhance product life.
# Advance and reliable software to incorporate and interface Grid-UPS Features.
# Intelligently Controlled Smart and PFC Charger to save electricity bill and money.
# Long Backup with being a pure sine wave output.
# 5-stage Smart Charging profile with Auto charge Equalization to enhance Battery life.
# User Selectable switches to select choice of operation.
# Pure sine wave Output even at full load. Very Low maintenance and easy installation.
# All Parts and Components are Genuine make. Dual display LCD & LED.
Technical Specification of Sinewave Home UPS |
||
| PARAMETERS | UNIT | ELEGANT SERIES |
| System rating (Name Plate) | VA | 1050 |
| Operating DC voltage | V | 12 |
| Technology Based | DSP Microcontroller Based | |
| Output voltage on inverter mode | Vac | 220V ± 10V |
| Output phase | Single Phase | |
| Output Frequency on Inverter | Hz | 50Hz ± 0.1Hz |
| Output voltage regulation | % | < 5 % |
| Output THD (v) at linear load | % | < 5 % |
| Creast Factor | 03:01 | |
| Cooling Fan ON at temp | °C | 55 °C |
| Cooling Fan Off at temp | °C | 50 °C |
| Battery low voltage alarm per battery | Vdc | 10.8V |
| Battery low voltage cut per battery | Vdc | 10.5V |
| Max Battery charging voltage current by grid per battery | Vdc | 14.4V ± 0.3V |
| Max Battery charging current by grid | Adc | Up To 16Amp |
| Input Voltage Range (Inv Mode) | Vac | 100-290V ± 10V |
| Input Voltage Range (UPS Mode) | 180-260 ± 10V | |
| Input current at no load at Nominal Battery voltage | Adc | <1.5A, DC |
| Noise @ 1 meter | dB | < 40 db |
| Protections | Short Circuit, Battery Overvoltage, Battery Lowvoltage, Battery Deep Discharge, Over Temp.(Auto Recovery) | |
| LCD Display parameters ( Only in Elegant Series ) | Mains Voltage, Output Voltage, Battery Charging, Battery Charged, And All The Faults | |
| Indication LEDs | Mains On, Charging On, Ups On, Battery Low, Overload | |
| Changeover time from inverter to mains in UPS mode | ms | <10 ms |
| Changeover time from inverter to mains in Normal mode | ms | <10 ms |
| Changeover time from mains to inverter in UPS mode | ms | <10 ms |
| Changeover time from mains to inverter in Normal mode | ms | <20 ms |
| Input Protection | Push to reset Circuit breaker | |
| Mode Slection | UPS/Inverter, Charging Voltage Amp HI/LO | |
| Weight and Dimension | ||
| System rating (Name Plate) | VA | 1050 |
| Packaging Box Dimension (LxWxH) | MM | 330*320*185 |
| Net Weight | kG | 7,760kg |
| Gross Weight | kG | 8,405kg |
RS. 27,000.00
Code Home UPS 1050VA
Brand MELLENNIUM
Size 1050 VA 12 Volt
Available Yes
Delivery
Yes
Call Now
+977 9857023662
