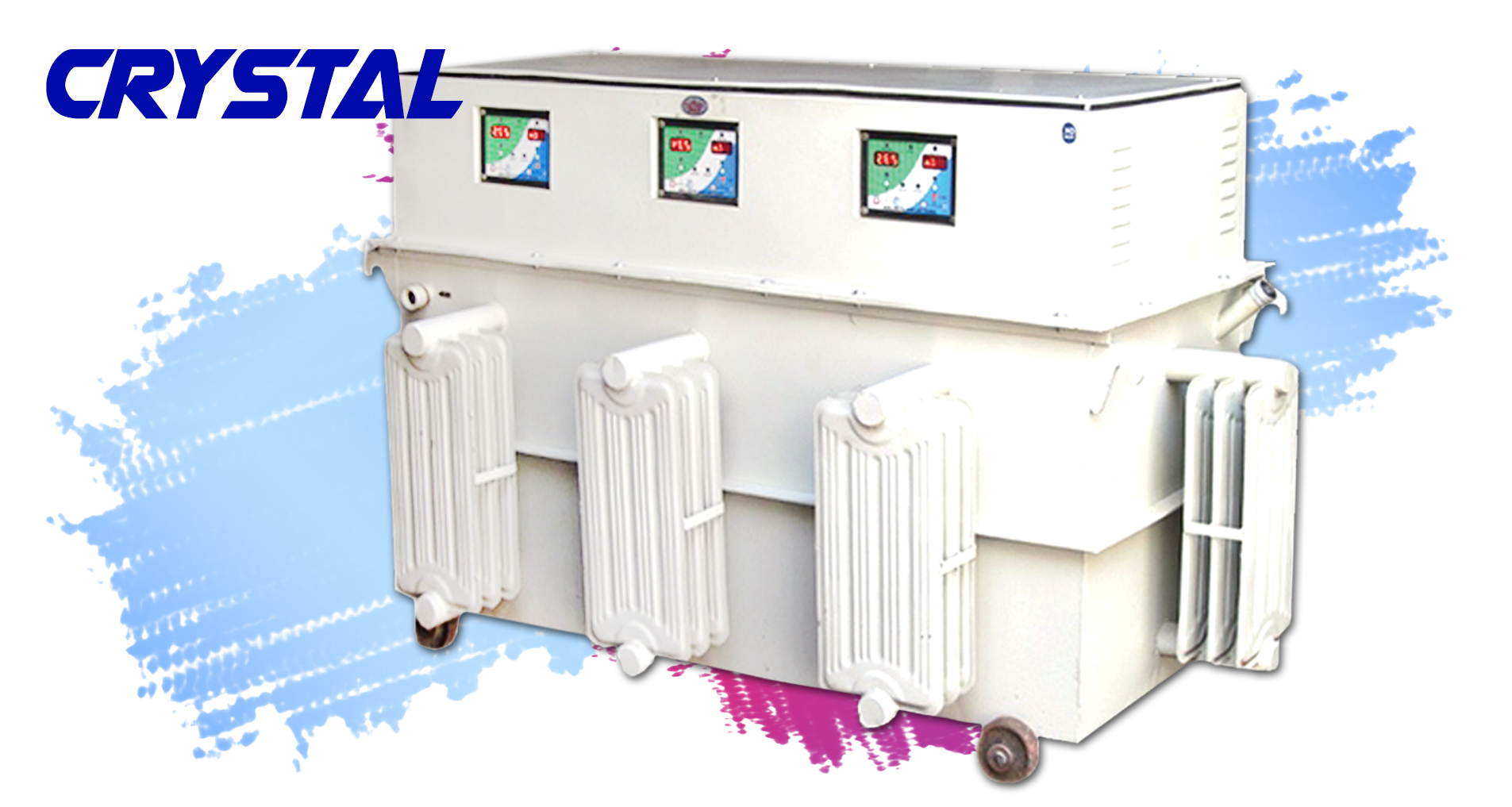

Servo Stabilizer – 250 kVA
Overview OF Product
Digital Servo Voltage Stabilizer
Brand: CRYSTAL
Country of Origin : INDIA
250 KVA, Three Phase, 415 Volt 50 Hz 0.8 P.F.
Input Voltage Range From 280 – 470 Volt (as per Requirement)
Output Voltage 400 V ±1%,
Oil Cooled
Balance Type DIMMER Servo Voltage Stabilizer
Under / Over Voltage, Over Current, Short Circuit, Over Load, Single Phase Protection, Reverse Phase Sequence protection, Earth Fault Protection charge will be extra | Body Construction by Power Coated MS Sheet, Low Noisy, Correction Speed 30 Volt Per Sec., Correction Method: Steeples correction using Variac, Digital controlled circuit, better than 98% Efficiency, Duty Cycle 100%, No Load Loss Less than 1 %,
Fully Automatic IC Based Solid State, Glass Epoxy Control Card for easy online Serviceability.
Suitable for 3 phase unbalanced | balanced supply, unbalanced | balanced loads | Specially designed control Card for faithful operation on mains as well as DG Set
Available with Different Voltage Range
We Customized Voltage Stabilizer as per your requirement for your constant POWER SUPPLY
| 250 kVA Industrial Type Voltage Controller 3 Phase – Oil Cooled | |
| Standard | Confirms to latest IS-1985 & ISO 9001-2015 standards |
| Rating | 250 KVA Three Phase |
| Input Voltage Range | 240 Volt to 470 Volt Phase to Phase / 140 Volt to 270 Volt Phase to Neutral Also Aviliable: 300 Volt to 470 Volt Phase to Phase / 175 Volt to 270 Volt Phase to Neutral 340 Volt to 470 Volt Phase to Phase / 195 Volt to 270 Volt Phase to Neutral |
| Output Voltage Range | 3 Phase 380/400/415+/-1% |
| Output Waveform | No Distortion |
| Correction Speed | 10-35V/Sec |
| Correction Method | Steeples Correction using Variac |
| Control Circuit | Fully Automatic IC based solid state, glass epoxy control card for easy on line serviceability |
| Input Frequency | 45 – 55 Hz |
| Cooling | OIL COOLED |
| Efficiency | Better than 98% |
| Duty Cycle | Continuous |
| Speed of Correction | 30V Per Second |
| Operation | Fully Automatic / Manual |
| No Load Loss | Less than 1% |
| Suitability | Suitable for 3 Phase Unbalanced / Balanced Supply, Unbalanced / Balanced load |
| Operating Temperature | -15 ºC to 50 ºC |
| Indications on | Input on | Input Low | Input High | Output On | Output Cut-off |
| Additional Facility | Step down / Isolations |
| Control on Each Phase | Auto/Manual Selector Seitch | Increase / Decrease Selector Switch |Volts adj. Potentiometer. |
| Compatibility to DG Set | Specially Designed control card for faithful operation on mains as well as DG Set. |
| Metering | Voltmeter to Read input and output | Voltage with selector switch | Amp. Meter to read input and output current in each Phase with selector Switch |

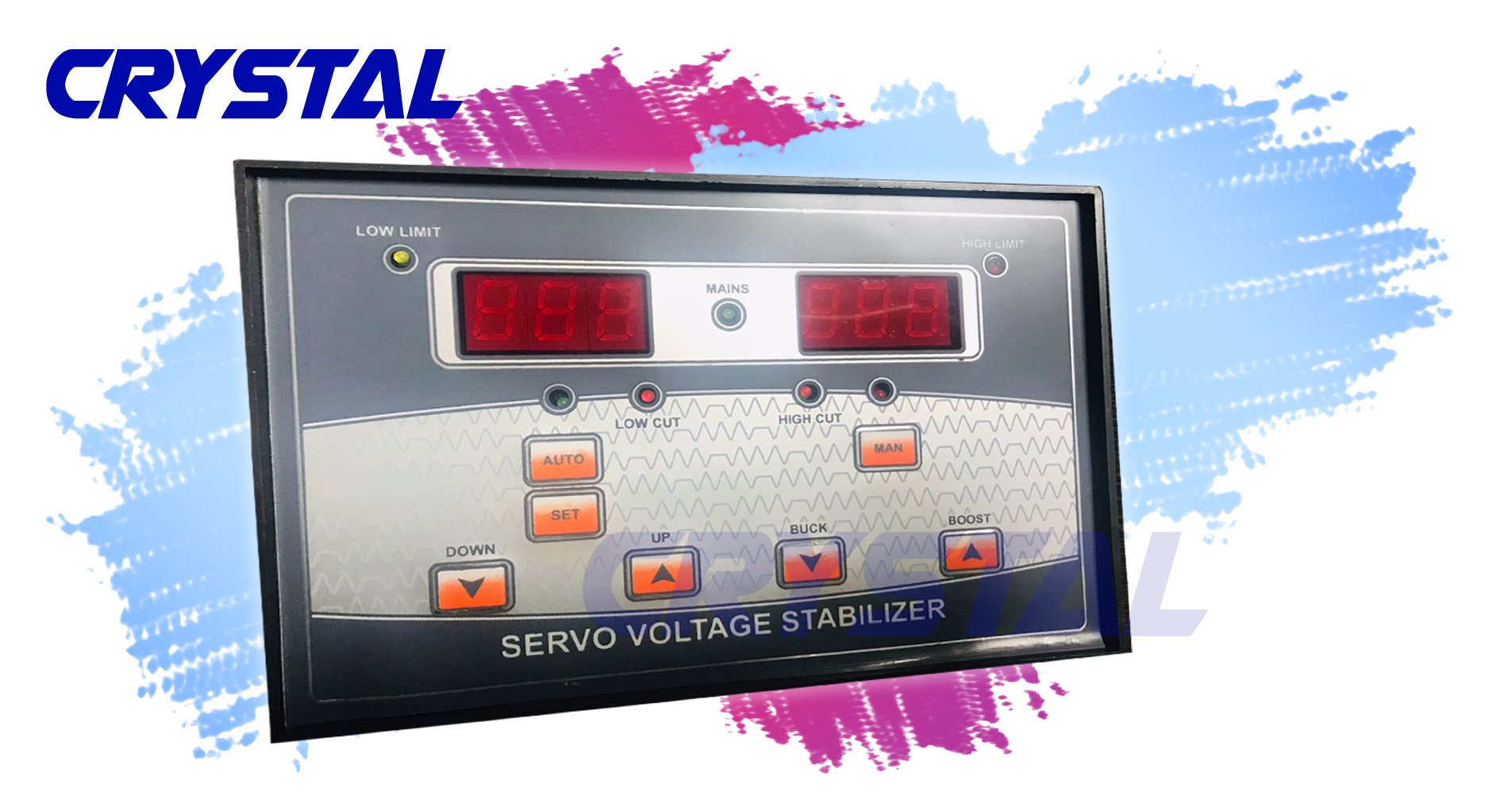

| Control Panel | Power on Indicator, Low/High indicator, Auto/Manual Selector Switch, Push Switches to adjust output voltage in manual mode, Selector Switch to Monitor, Input/Output Voltage, Potentiometer Knob to adjust output voltage within 5% of the set output voltage, Voltmeter to Indicate Output/Input Voltage. |
| Transformers & Variacs | Are wound with electrolyte grade copper of 99.9% purity, Low loss CRGO Lamination is used to increased over all efficiency, this reduced Energy losses and hence Saves Electricity. |
| Earthing | Provided through two bolts & Nuts |
| WINDINGS | Coils are wound with paper covered electrolytic grade copper strip or synthetic enamelled copper conductors. Cooling ducts are provided to keep the hot spot temperature as low as possible. Coils are dried in electric ovens. Rigid connection support and coil clamping is provided to ensure high short circuit strength. |
| TANK AND PAINT | The tank of Servo Voltage Stabilizer is made of M.S. steel sheets. All the external surfaces are given a primary coat of epoxy and finishing coat of epoxy paint for better life and leak proof. All our tanks are power coated for shelf life of 20 – 25 years. |
| OIL | Oil tested for resistivity, dielectric and acidic characteristic conforming to IS 335, transformer oil is an important part of Servo Voltage Stabilizer which provides cooling to the critical components housed inside the tank, so we always make sure that the quality of the transformer oil is far better. |
| DUTY CYCLE | Conventional type stabilizers are suitable for 50-60% load on continuous duty cycle. Servo Voltage Stabilizers are heavy duty and industries friendly and are suitable for 99% load continuous duty cycle. |
| Optional Feature (Which can be incorporated for extra cost) |
: High and low Voltage cut off system : Over Load and Short Circuit Protection : Phase sequence change protection : Change over switch to by pass the Stabilizer and use main voltage directly : Single Phase Prevention system (in three phases) shuts down the stabilizer in case any of phases fails Surge and RF Suppression System. : Power factor correction system to reduce power consumption for saving power. : Ammeter with CT to monitor the connected load. : Earth Protection, Temperature Gauge and Isolation Transformer. |
RS. 20,00,000.00
Code Servo Voltage Controller
Brand CRYSTAL
Size 250 kVA Three Phase OIL COOLED
Available Yes
