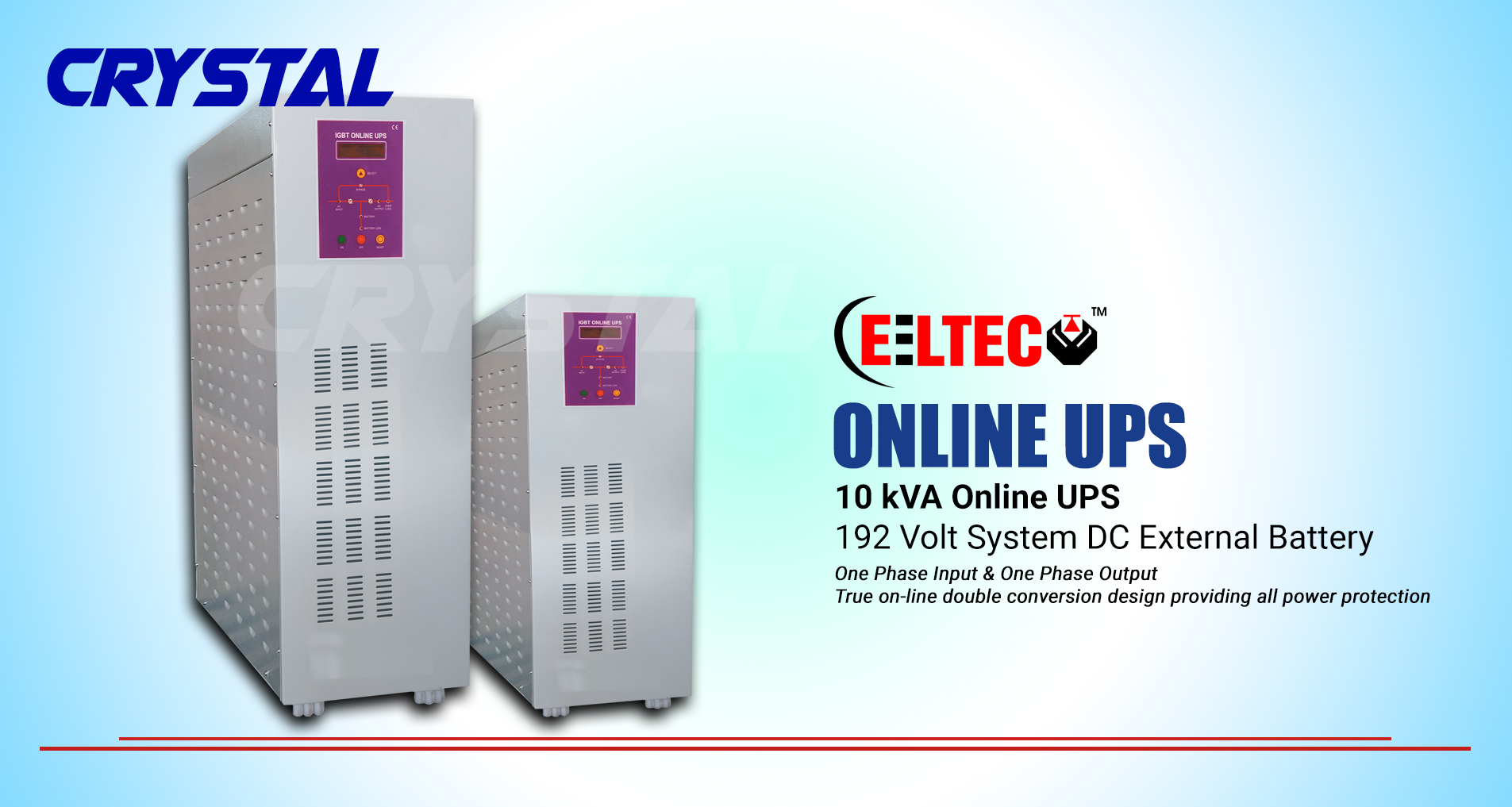

Online UPS 10kVA
Application
Banking, Insurance, Defense, Telecommunication, Processing Industry, IT & IREs, Data Centre, Education, Medical Diagnostics & Pharmaceuticals, etc
Ker Feature of Online UPS
# One Phase input One Phase Output | # Sine wave pulse wide modulation
# True Online Double Conversion design providing all power protection
# IGBT inverter design.. # Wide Input voltage window # Pure sine wave output less than 3% THD
# Expandable battery run time # Generator compatible # Compact, Sleek Design
# Load/Battery power meter display # Overload, on-line, battery status LED/LCD
# Advanced Battery Management # Automatic charging in UPS off mode
# Smart RS-232 communication port # SNMP Card (Optional)
Technical Specification of ONLINE UPS |
|
| RATING kVA | 10 kVA |
| MODEL NO. | CY101-10 |
| LOAD POWER FACTOR RANGE | 0.8 P.F. Lagging |
| TYPE | Single phase Input – Single Phase Output |
| TECHNOLOGY | DSP based Double Conversion Online UPS System |
| INPUT PARAMETERS | |
| INPUT SUPPLY | 1 Phase, 3 Wires P,N,E |
| VOLTAGE RANGE | 180 – 280 Volts AC |
| FREQUENCY RANGE | 47 to 53 Hz |
| OUTPUT PARAMETERS | |
| POWER | 8 kW |
| VOLTAGE REGULATION | Single Phase , 2 Wire (P, N) 230 V ± 1% |
| FREQUENCY REGULATION | 50Hz ± 0.1Hz |
| PEAK EFFICIENCY | >85% |
| OUTPUT WAVEFORM | Pure Sine Wave |
| TOTAL HARMONIC DISTORTION | <5% (at Full Resistive Load) |
| LOAD CREST FACTOR | >3:1 |
| OVERLOAD HANDLING CAPACITY | 110% for 2 Minutes |
| BY-PASS | Maintenance By-Pass Available |
| BATTERY PARAMETERS | |
| BATTERY TYPE | LA/TUBLAR/SMF |
| BATTERY RECOMMENDATION | From 7.2 AH to 200 AH |
| NO of BATTERY & VOLTAGE | 16 Nos. / 192 Volt VDC |
| BATTERY CHARGING CURRENT | 7 to 10 Amp |
| BATTERY SELF TEST | Automatic and Manual |
| ENVIRONMENTAL PARAMETERS | |
| OPERATING TEMPERATURE | 0-45 Deg. C |
| ACOUSTIC NOISE (AT 1MTS) | <45 Db at 1 Meter |
| RELATIVE HUMIDITY | Max 95% condensing |
| OTHERS | |
| INDICATIONS AND ALARMS | Backlite 16 x 2 Lines LCD Screen with Indication |
| ALARM | Mains Failure, Battery Low, Over Load, Short Circute |
| PROTECTION CLASS | IP 20 |
| PROTECTION | Short Circute, Over Voltage & Under Voltage Protection |
| SHORT CIRCUIT PROTECTION | 200% LOAD (with in few milliseconds) |
| MONITORING SOFTWARE | Additional Software available for remote Monitoring |
| COOLING | Forced AIR Cooled |
| UPS EFFICIENCY | >85% |
RS. 3,00,000.00
Code Online UPS
Brand EELTEC
Size 10 kVA 1PH Input 1PH Output 192 Volt DC
Available Yes
