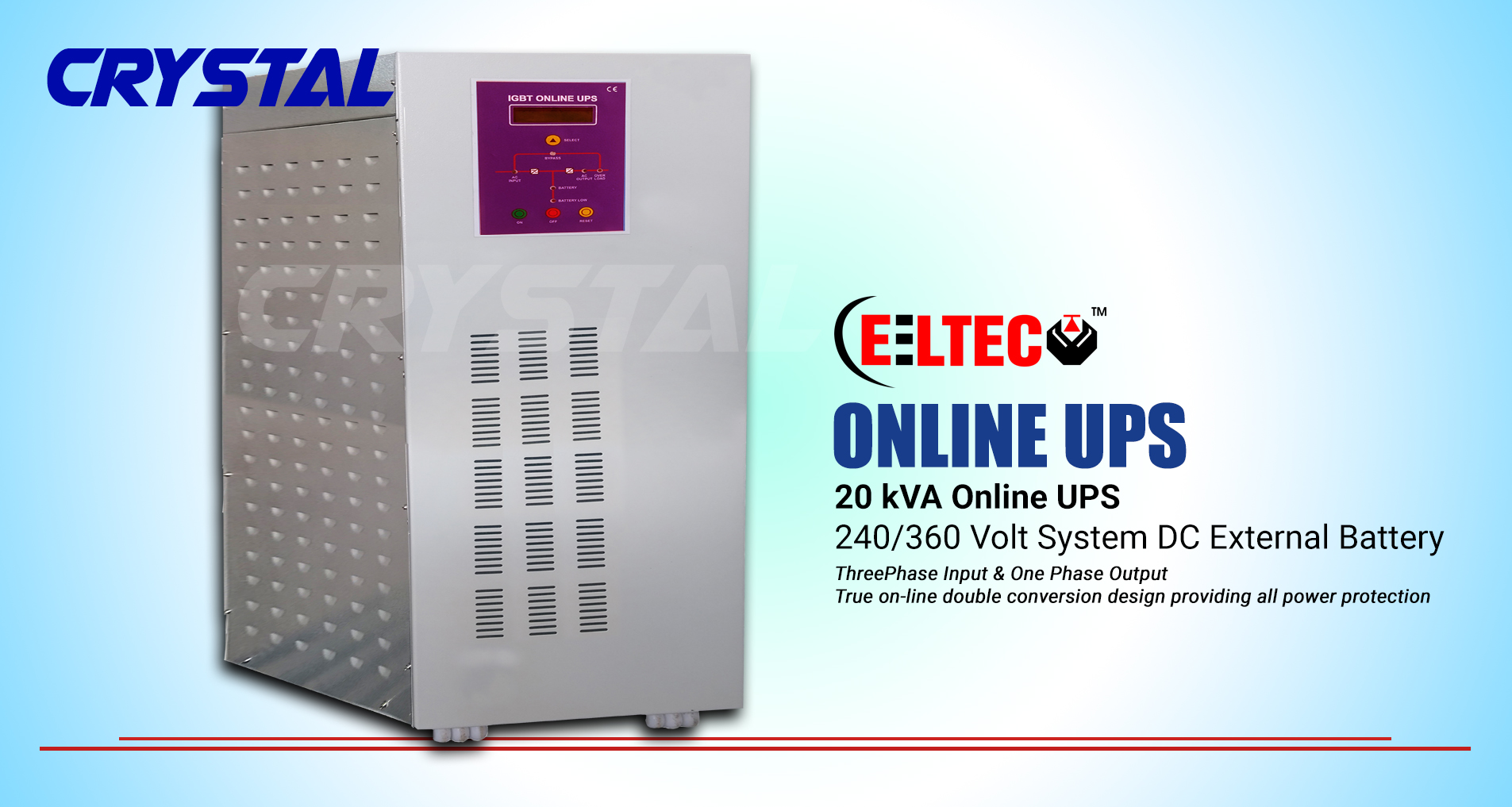

Online UPS 20kVA
Applications:
Banking, Insurance, Defense, Telecommunication, Process Industry, IT & ffEs, Data Centre, Education, Medical Diagnostics & Pharmaceuticals, etc
Uninterruptible Power Supply (UPS) is an electronics system which is used to supply uninterrupted power to sensitive equipment’s and devices which have critical applications. EELTEC Uninterruptible power supplies (UPS) ensure continuous and disturbance-free power to your Mission critical applications. It is also commonly used to protect electronic hardware such as computers and telecommunication equipment where power interruption can cause data loss or business disruptions. UPS supply is continuous and uninterruptible irrespective of the incoming mains supply conditions, low voltage, spikes, transients and blackout i.e. failure of mains supply. UPS units vary in size to deliver electrical power 200 VA to 200KVA or above
Technical Specification of ONLINE UPS |
|
| RATING kVA | 20 kVA |
| MODEL NO. | CY301-20 |
| LOAD POWER FACTOR RANGE | 0.8 P.F. Lagging |
| TYPE | 3 PHASE IN – 1 PHASE OUT |
| TECHNOLOGY | DSP based PWM technology using IGBT |
| INPUT PARAMETERS | |
| INPUT SUPPLY | 3 Phase 4 Wire |
| VOLTAGE RANGE | 145V – 270V |
| FREQUENCY RANGE | 45-56Hz |
| OUTPUT PARAMETERS | |
| POWER | 16 kW |
| VOLTAGE REGULATION | 230 V ± 2% (P-N), 400 V ± 2% (P-P) |
| FREQUENCY REGULATION | 50Hz ± 0.1Hz |
| PEAK EFFICIENCY | >92% |
| OUTPUT WAVEFORM | Pure Sine Wave |
| TOTAL HARMONIC DISTORTION | <3% at Full Load |
| LOAD CREST FACTOR | 03:01 |
| OVERLOAD HANDLING CAPACITY | 110% for 5 Mins, 150% for 15 Secs, 200% -for 4 Secs, 300% for 2 Secs |
| BY-PASS | Recovery to ± 5% within 1.5 Cycles |
| BATTERY PARAMETERS | |
| BATTERY TYPE | LA/TUBLAR/SMF |
| BATTERY RECOMMENDATION | From 7.2 AH to 200 AH |
| NO of BATTERY & VOLTAGE | 20 Nos. 240 Volt DC / 30 Nos. 360 Volt DC |
| BATTERY CHARGING CURRENT | 3A ± 0.5A to 20A ± 0.5A |
| BATTERY SELF TEST | Automatic and Manual |
| ENVIRONMENTAL PARAMETERS | |
| OPERATING TEMPERATURE | 0-55° C |
| ACOUSTIC NOISE (AT 1MTS) | <65db |
| RELATIVE HUMIDITY | Max 95% non – condensing |
| OTHERS | |
| INDICATIONS AND ALARMS | Backlite 16 x 2 Lines LCD Screen with Indication, Alarms & Remedy |
| ALARM | Mains Failure, Battery Low, Over Load, Short Circute |
| PROTECTION CLASS | IP 20 |
| PROTECTION | Short Circute, Over Voltage & Under Voltage Protection |
| SHORT CIRCUIT PROTECTION | 200% LOAD (with in few milliseconds) |
| MONITORING SOFTWARE | Additional Software available for remote Monitoring |
| COOLING | Forced AIR Cooled |
| UPS EFFICIENCY | >85% |
RS. 5,80,000.00
Code Online UPS
Brand CRYSTAL
Size 20 kVA 3PH Input 1PH Output 240V DC
Available Yes
